滾珠滑塊
R162331220 力士樂滑塊
品 牌：博世力士樂
產品規格：35
預緊等級：C1（預緊2%C）
精度等級：P
- 產品介紹
- 技術參數
- 產品圖片
R162331220 力士樂滑塊是鋼制標準滾珠滑塊，窄型、長、標準高，帶標準密封，不帶滾珠鏈。
上海準密專業供應rexroth-star力士樂導軌，滑塊R1623-
規格：15、20、25、30、35、55、65
精度：N、P、H
部分部件號：
15
N R162319420 ,REXROTH/STAR滾珠滑塊R162311420,REXROTH/STAR滾珠滑塊 - -
20 ,
P - R162381220,REXROTH/STAR滾珠滑塊 R162382220,REXROTH/STAR滾珠滑塊 R162383220 ,REXROTH/STAR滾珠滑塊
H R162389320 ,REXROTH/STAR滾珠滑塊R162381320,REXROTH/STAR滾珠滑塊 R162382320, REXROTH/STAR滾珠滑塊-
N R162389420,REXROTH/STAR滾珠滑塊 R162381420,REXROTH/STAR滾珠滑塊 R162382420,REXROTH/STAR滾珠滑塊 -
25
P - R162321220 ,REXROTH/STAR滾珠滑塊R162322220,REXROTH/STAR滾珠滑塊 R162323220 ,REXROTH/STAR滾珠滑塊
H R162329320,REXROTH/STAR滾珠滑塊 R162321320,REXROTH/STAR滾珠滑塊 R162322320,REXROTH/STAR滾珠滑塊 -
N R162329420,REXROTH/STAR滾珠滑塊 R162321420,REXROTH/STAR滾珠滑塊 R162322420,REXROTH/STAR滾珠滑塊 -
30
P - R162371220 ,REXROTH/STAR滾珠滑塊R162372220,REXROTH/STAR滾珠滑塊 R162373220 ,REXROTH/STAR滾珠滑塊
H R162379320 ,REXROTH/STAR滾珠滑塊R162371320 ,REXROTH/STAR滾珠滑塊R162372320 ,REXROTH/STAR滾珠滑塊-
N R162379420 ,REXROTH/STAR滾珠滑塊R162371420,REXROTH/STAR滾珠滑塊 R162372420 ,REXROTH/STAR滾珠滑塊-
35
P - R162331220,REXROTH/STAR滾珠滑塊 R162332220,REXROTH/STAR滾珠滑塊 R162333220 ,REXROTH/STAR滾珠滑塊
H R162339320 ,REXROTH/STAR滾珠滑塊R162331320 ,REXROTH/STAR滾珠滑塊R162332320 ,REXROTH/STAR滾珠滑塊-
N R162339420,REXROTH/STAR滾珠滑塊 R162331420 ,REXROTH/STAR滾珠滑塊R162332420,REXROTH/STAR滾珠滑塊 -
45 *
P - R162341220,REXROTH/STAR滾珠滑塊 R162342220,REXROTH/STAR滾珠滑塊 R162343220,REXROTH/STAR滾珠滑塊
H R162349320,REXROTH/STAR滾珠滑塊 R162341320,REXROTH/STAR滾珠滑塊 R162342320,REXROTH/STAR滾珠滑塊 -
N R162349420,REXROTH/STAR滾珠滑塊 R162341420 ,REXROTH/STAR滾珠滑塊R162342420,REXROTH/STAR滾珠滑塊 -
45 **
P - R1623-412-10,REXROTH/STAR滾珠滑塊 R1623-422-10,REXROTH/STAR滾珠滑塊 R1623-432-10 ,REXROTH/STAR滾珠滑塊
H R1623-493-10,REXROTH/STAR滾珠滑塊 R1623-413-10,REXROTH/STAR滾珠滑塊 R1623-423-10,REXROTH/STAR滾珠滑塊 -
N R1623-494-10 ,REXROTH/STAR滾珠滑塊R1623-414-1,REXROTH/STAR滾珠滑塊 R1623-424-10 ,REXROTH/STAR滾珠滑塊-
55
P - R1623-512-10,REXROTH/STAR滾珠滑塊R1623-522-10 ,REXROTH/STAR滾珠滑塊R1623-532-10 ,REXROTH/STAR滾珠滑塊
H R1623-593-10,REXROTH/STAR滾珠滑塊 R1623-513-10,REXROTH/STAR滾珠滑塊 R1623-523-10,REXROTH/STAR滾珠滑塊 -
N R1623-594-10 ,REXROTH/STAR滾珠滑塊R1623-514-10 ,REXROTH/STAR滾珠滑塊R1623-524-10,REXROTH/STAR滾珠滑塊 -
65
P - R1623-612-10 ,REXROTH/STAR滾珠滑塊R1623-622-10,REXROTH/STAR滾珠滑塊 R1623-632-10 ,REXROTH/STAR滾珠滑塊
H R1623-693-10 ,REXROTH/STAR滾珠滑塊R1623-613-10,REXROTH/STAR滾珠滑塊 R1623-623-10,REXROTH/STAR滾珠滑塊 -
N R1623-694-10 ,REXROTH/STAR滾珠滑塊R1623-614-10 ,REXROTH/STAR滾珠滑塊R1623-624-10,REXROTH/STAR滾珠滑塊 -
15
N R1623-194-10, 力士樂滾珠滑塊R1623-114-10 -力士樂滾珠滑塊 -
20
P - R1623-812-10 ,REXROTH/STAR滾珠滑塊R1623-822-10,REXROTH/STAR滾珠滑塊 R1623-832-10,REXROTH/STAR滾珠滑塊
H R1623-893-10 ,REXROTH/STAR滾珠滑塊R1623-813-10 ,REXROTH/STAR滾珠滑塊R1623-823-10,REXROTH/STAR滾珠滑塊 -
N R1623-894-10, REXROTH/STAR滾珠滑塊R1623-814-10,REXROTH/STAR滾珠滑塊 R1623-824-10 ,REXROTH/STAR滾珠滑塊-
25
P - R1623-212-10 ,REXROTH/STAR滾珠滑塊R1623-222-10,REXROTH/STAR滾珠滑塊 R1623-232-10,REXROTH/STAR滾珠滑塊
H R1623-293-10,REXROTH/STAR滾珠滑塊 R1623-213-10,REXROTH/STAR滾珠滑塊 R1623-223-10,REXROTH/STAR滾珠滑塊-
N R1623-294-10 ,REXROTH/STAR滾珠滑塊R1623-214-10,REXROTH/STAR滾珠滑塊 R1623-224-10 ,REXROTH/STAR滾珠滑塊-
30
P - R1623-712-10,REXROTH/STAR滾珠滑塊 R1623-722-10, REXROTH/STAR滾珠滑塊R1623-732-10 ,REXROTH/STAR滾珠滑塊
H R1623-793-10,REXROTH/STAR滾珠滑塊 R1623-713-10REXROTH/STAR滾珠滑塊 ,R1623-723-10 ,REXROTH/STAR滾珠滑塊-
N R1623-794-10,REXROTH/STAR滾珠滑塊 R1623-714-10 ,REXROTH/STAR滾珠滑塊R1623-724-10 ,REXROTH/STAR滾珠滑塊-
35
P - R1623-312-10,REXROTH/STAR滾珠滑塊 R1623-322-10,REXROTH/STAR滾珠滑塊 R1623-332-10,REXROTH/STAR滾珠滑塊
H R1623-393-10,REXROTH/STAR滾珠滑塊 R1623-313-10 ,REXROTH/STAR滾珠滑塊R1623-323-10,REXROTH/STAR滾珠滑塊 -
N R1623-394-10 ,REXROTH/STAR滾珠滑塊R1623-314-10,REXROTH/STAR滾珠滑塊 R1623-324-10,REXROTH/STAR滾珠滑塊

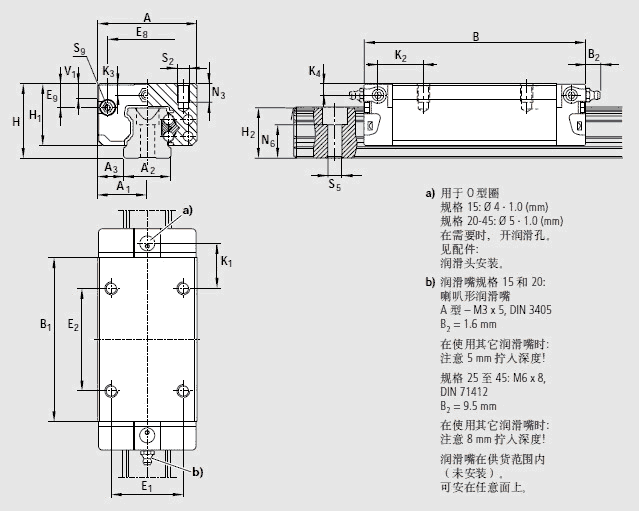

| A | 70 | |
| A1 | 35 | |
| A2 | 34 | |
| A3 | 18.0 | |
| B | 139.0 | |
| B1 | 105.5 | |
| E1 | 50 | |
| E2 | 72 | |
| E8 | 58.00 | |
| E9 | 17.35 | |
| H | 48 | |
| H1 | 40.40 | |
| H21) | 32.15 | |
| H22) | 31.85 | |
| K1 | 23.75 | |
| K2 | 25.25 | |
| K3 | 6.90 | |
| K4 | 6.90 | |
| N3 | 13.0 | |
| N6±0.5 |
20.5 |
|
| S2 | M8 | |
| S5 | 9.0 | |
| S9 |
M3*5 |
|
| T | 80 | |
| V1 | 8.0 | |
| 重量 | 1.70 | |
| 額定載荷C3) | 55 600 |  |
| 額定載荷 C03) | 81 000 | |
| 額定轉矩 Mt3) | 1 200 |  |
| 額定轉矩 Mto3) | 1 740 | |
| 額定轉矩 ML3) | 830 |  |
| 額定轉矩 ML03) | 1 215 |  |
1)尺寸H2帶防護帶
2)尺寸H2不帶防護帶
3)不帶滾珠鏈的滾珠滑塊的額定載荷和轉矩。
額定載荷和額定動轉矩是以100，000米行程為基礎確定的(根據ISO 14728-1)，但實際中經常是以50，000米行程為基礎。
在此情況下，表格中的C、Mt、和ML的值乘以1.26。
